VHJ Series Mixers

Brand Name : TY

Model Number : VHJ

Place of Origin : China

MOQ : 1

Price : USD10000

Payment Terms : D/P, T/T, Western Union

Supply Ability : 100

Delivery Time : 5-8days

Packaging Details : case

SERIES : VHJ

NAME : MIXERS

FROM : CHINA

Contact Now

Descriptions:
This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.
The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty.
Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.

Echnical parameters:

Model	VHJ-0.18	VHJ-0.3	VHJ-0.5	VHJ-1.0	VHJ-1.5	VHJ-2.0	VHJ-2.5	VHJ-3.0	VHJ-4.0	VHJ-5.0	VHJ-6.0
Productive capacity(kg/time)	72	120	200	400	600	80	1000	1200	1600	2000	2400
Model of vacuum pump	W2	W2	W2	W3	W3	W3	W3	W4	W4	W4	W4
Time of raw material fed in(min)	3-5	3-5	4-6	6-9	6-10	8-13	8-15	8-12	10-15	15-20	18-25
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	8-12	8-12	8-12	8-12
Total volume(m3)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0	6.0
Stirring speed(r/min)	12	12	12	12	12	12	12	10	10	10	10
Motor power(kw)	1.1	1.1	2.2	4	4	5	7.5	7.5	11	15	18.5
Rotation height(mm)	1580	1760	2400	2840	3010	3240	3680	3700	4350	4800	5300
Weight (kg)	280	320	550	950	1020	1600	2040	2300	2800	3250	3850

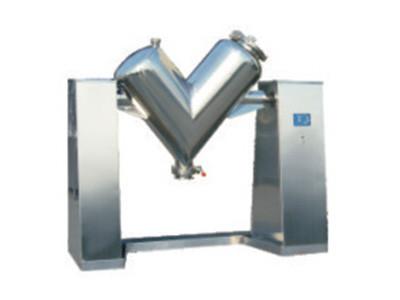

VHJ Series Mixers Images
